WEIGHBRIDGE
Application
Minco Weighbridge/Truck Scale solution delivers consistent accuracy through stringent testing procedures to maximize loads and efficiency. It gives commercial vehicle operators the information required to effectively manage their fleet with confidence Our products have been widely used in Australian transport, logistics, quarries, mining, waste management, and agricultural industries.
Features
- Cost Effective and easy to install.
- Easy to read and display gross weight, as well as the weights.
- Well-suited to temporary sites or where portability is a pre-requisite.
- Minimum foundation works.
- Least amount of site preparation prior to construction.

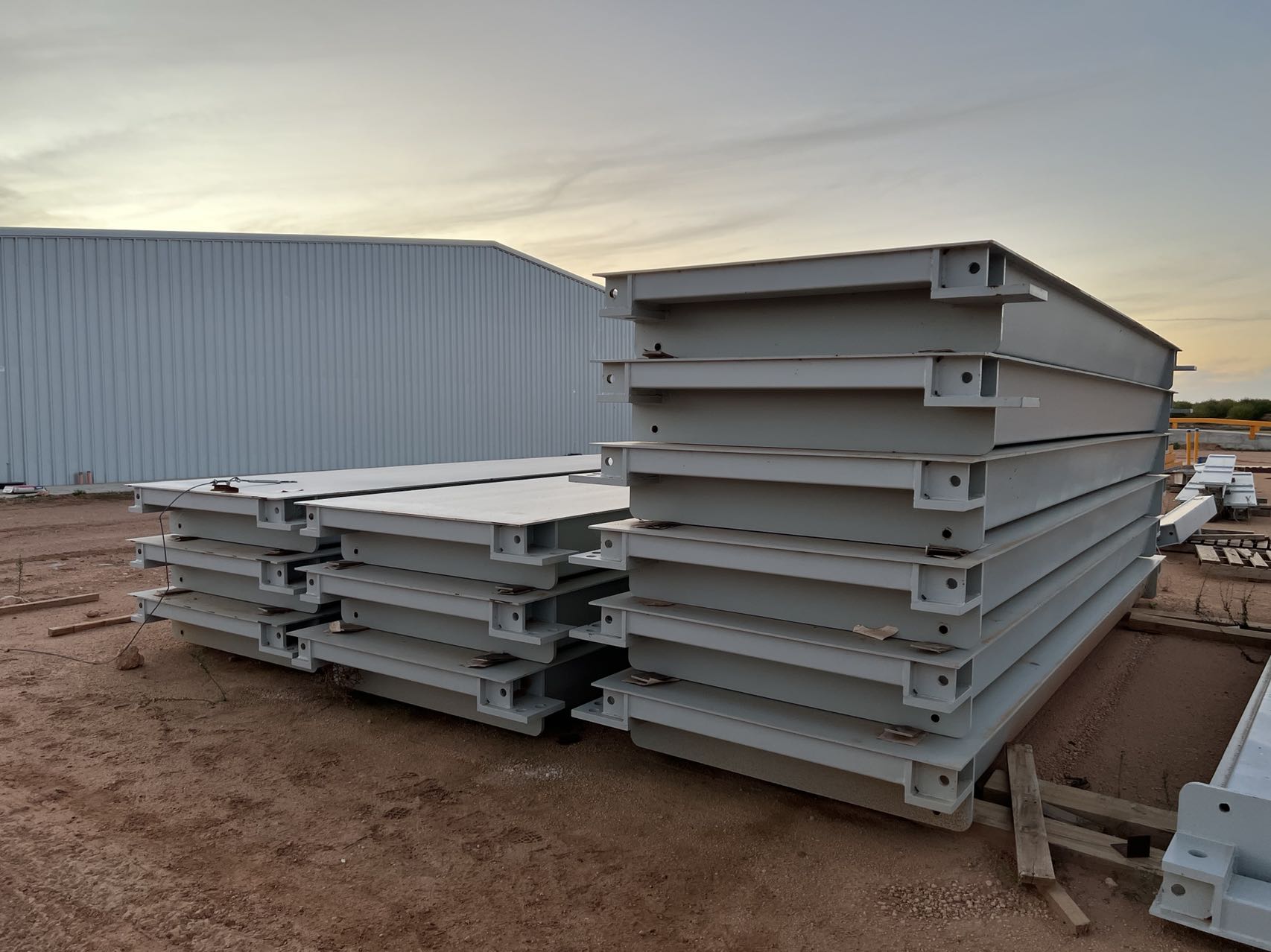

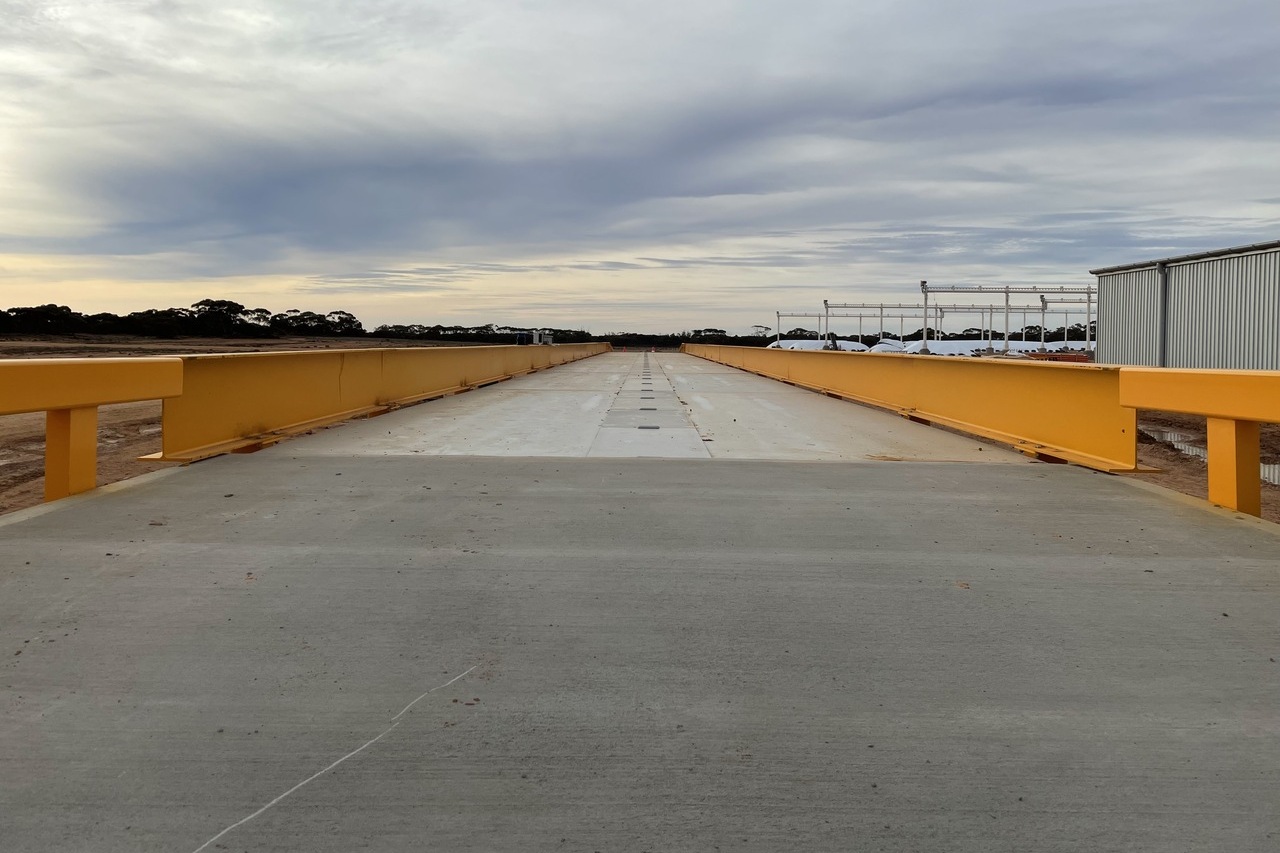

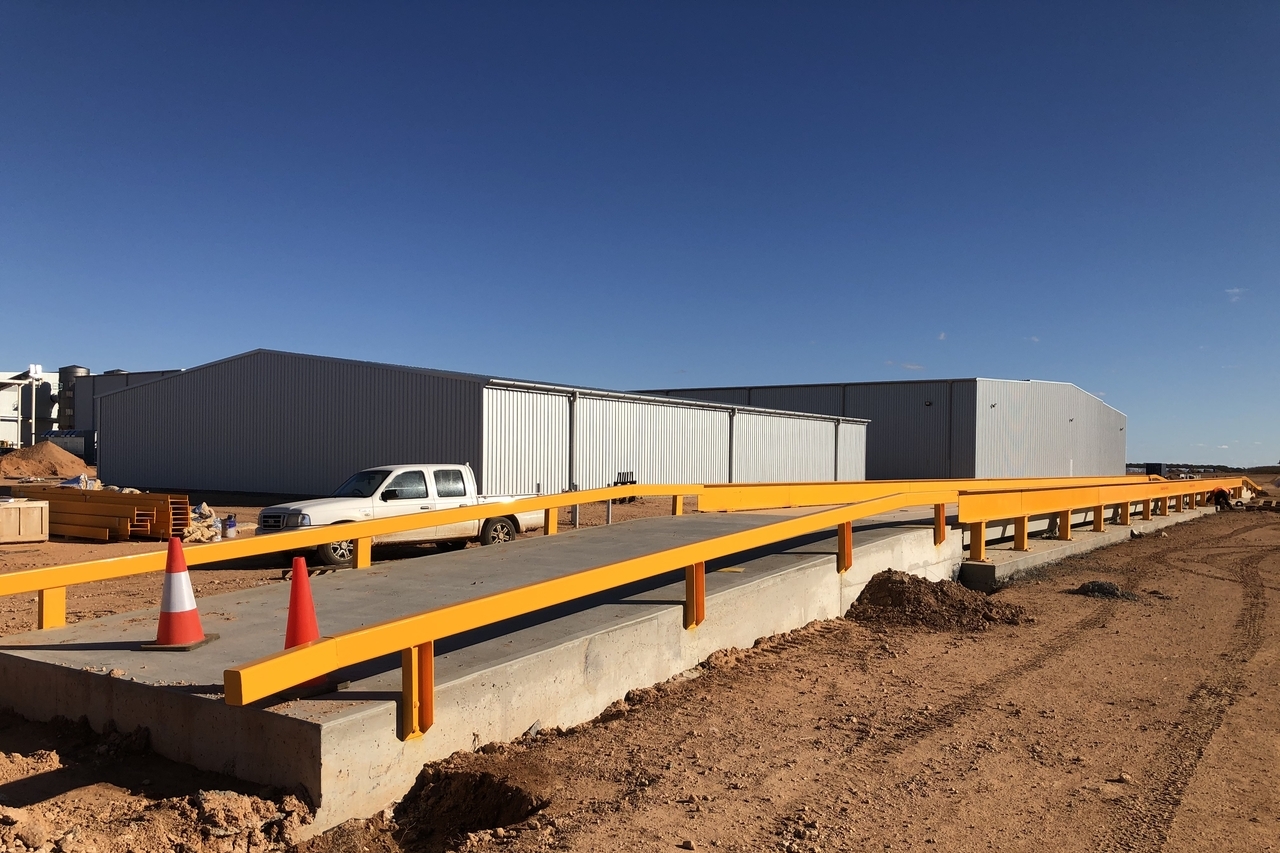

Product Gallery
Previous
Next
Specifications
Item | Technical Parameters |
Accuracy (Dynamic) | Grade 2/5 in total weight |
Weighing Range (t) | 30 – 200 |
Weight Platform Length (m) | 6 – 36 |
Safety Overload | 150% F.S. |
Permitted Speed (km/h) | 0 -40 |
Protection Level | Weighing Controller: IP65, Weight Platform & Sensors: IP68 |
Working Environment | Temperature: -45 – 80 ℃, Humidity ≤95& R.H. |
Power Supplier | 400V/50Hz/3P |
