TUBE DRAG CONVEYOR
Application
Minco Tube Drag Conveyors (also called tubular drag conveyors or disc conveyors) are engineered to transport large scale food and bulk solids across large spaces, between floors, or even between buildings. And they can protect the products from degradation, separation, sifting, and exposure to the elements.
Features
- Easy to use and low maintenance
- Compact footprint that can go between tight spaces
- No risk of cross-contamination of flavors or food allergens when changing change over ingredients

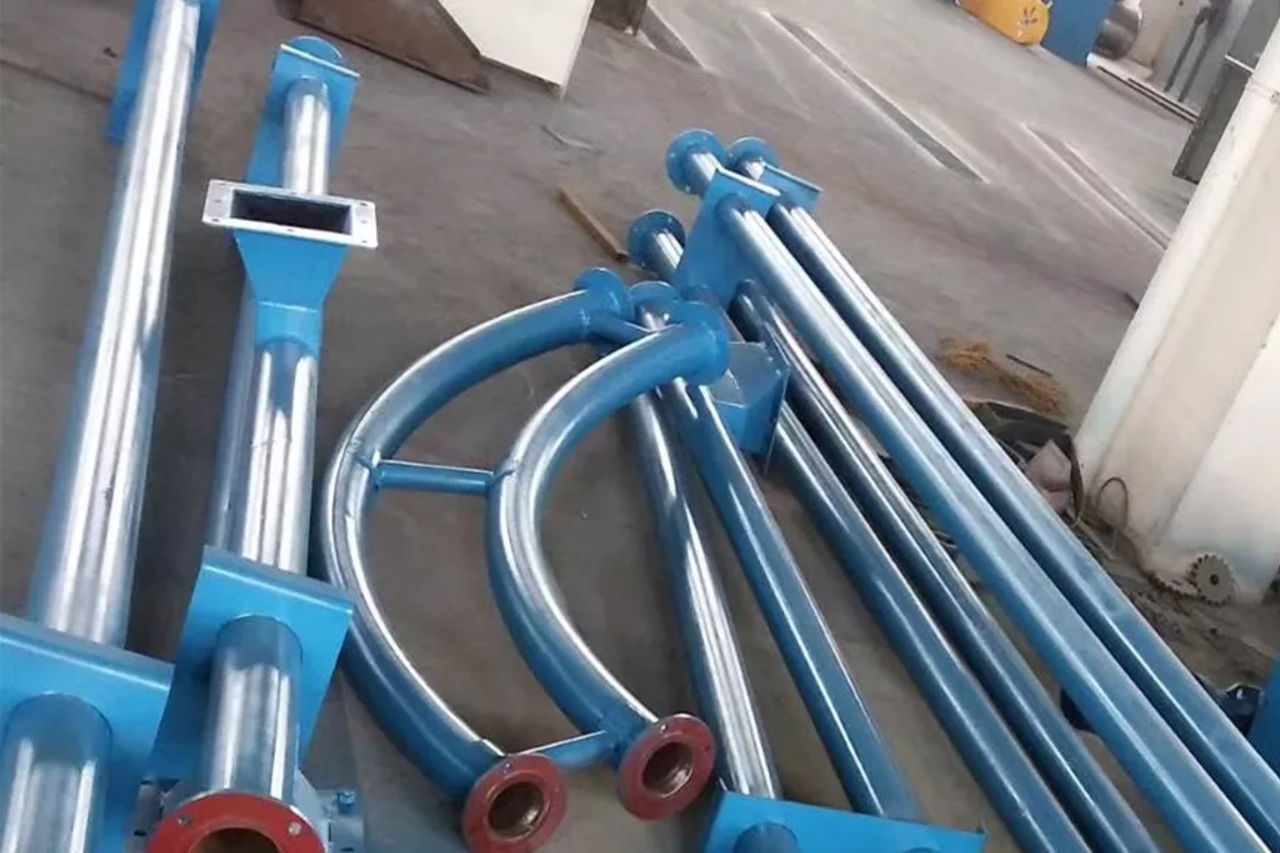

Product Gallery
Specifications
Model | Pipe Dia. (mm) | Capacity (t/h) | Conveying length (mm) | Power (KW) |
GL-50 | DN50 | 0.5-1.5 | 0-60 | 0.8-2.2 |
GL-80 | DN80 | 1-3 | 0-60 | 0.18-3 |
GL-100 | DN100 | 2-7 | 0-60 | 0.55-4 |
GL-125 | DN125 | 3-10 | 0-60 | 1.1-5.5 |
GL-150 | DN150 | 8-25 | 0-60 | 2.2-7.5 |
GL-200 | DN200 | 15-50 | 0-60 | 3-15 |
GL-250 | DN250 | 30-75 | 0-60 | 5.5-18.5 |
GL-300 | DN300 | 60-120 | 0-60 | 7.5-22 |
