TROUGH BELT CONVEYOR
Application
Minco Trough Belt Conveyors are engineered to rapidly and efficiently transport various materials such as glass, cans, sand, waste paper, etc. They are great for conveying loose or bulk materials, especially if the material is abrasive. Also for conveying long distances while minimizing spillage. Inclined and horizontal conveyor configurations are available in white FDA epoxy powder coated, 304 or 316 stainless steel construction.
Features
- Large conveying capacity, long conveying distance, stable transportation.
- No relative movement of material and conveyor belt.
- Low noise and simple structure.
- Easy to maintain and low energy consumption.

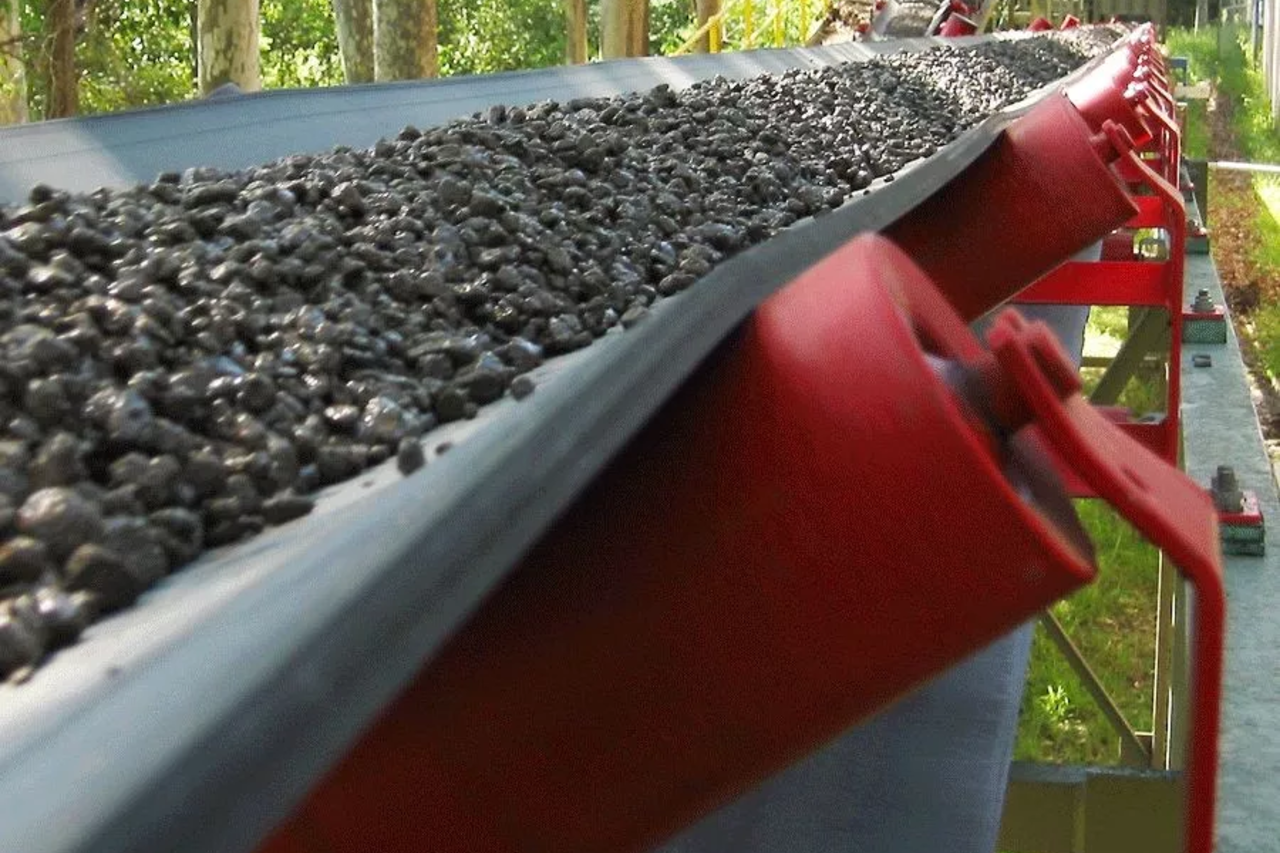

Product Gallery
Specifications
Belt Width (mm) | Belt Length (mm)/Power (KW) | Belt Speed (m/s) | Capacity (t/h) | ||
B400 | <12/1.5 | 12-20/2.2 | 20-25/3 | 0.8-2 | 30-60 |
B500 | <12/3 | 12-20/4 | 20-30/5.5 | 0.8-2 | 40-80 |
B650 | <12/4 | 12-20/5.5 | 20-30/7.5 | 0.8-2 | 80-120 |
B800 | <12/4 | 10-15/5.5 | 15-25/7.5 | 1-2 | 120-200 |
B1000 | <10/5.5 | 10-20/7.5 | 20-25/11 | 1-2 | 200-320 |
B1200 | <10/7.5 | 10-20/11 | 20-25/15 | 1-2 | -290-480 |
