SQUEARE SILO
Application
Minco square silo is the right shape for maximum storage capacity as our square silos provide 25% more storage capacity than round silos on the same floor area. This system is the most effective solution for dry and granular bulk goods that are to be further processed into various types and grades.
Features
- Large & Various capacities.
- Long service life.
- Easy to install & maintain.
- Less investment.
- Short construction time.

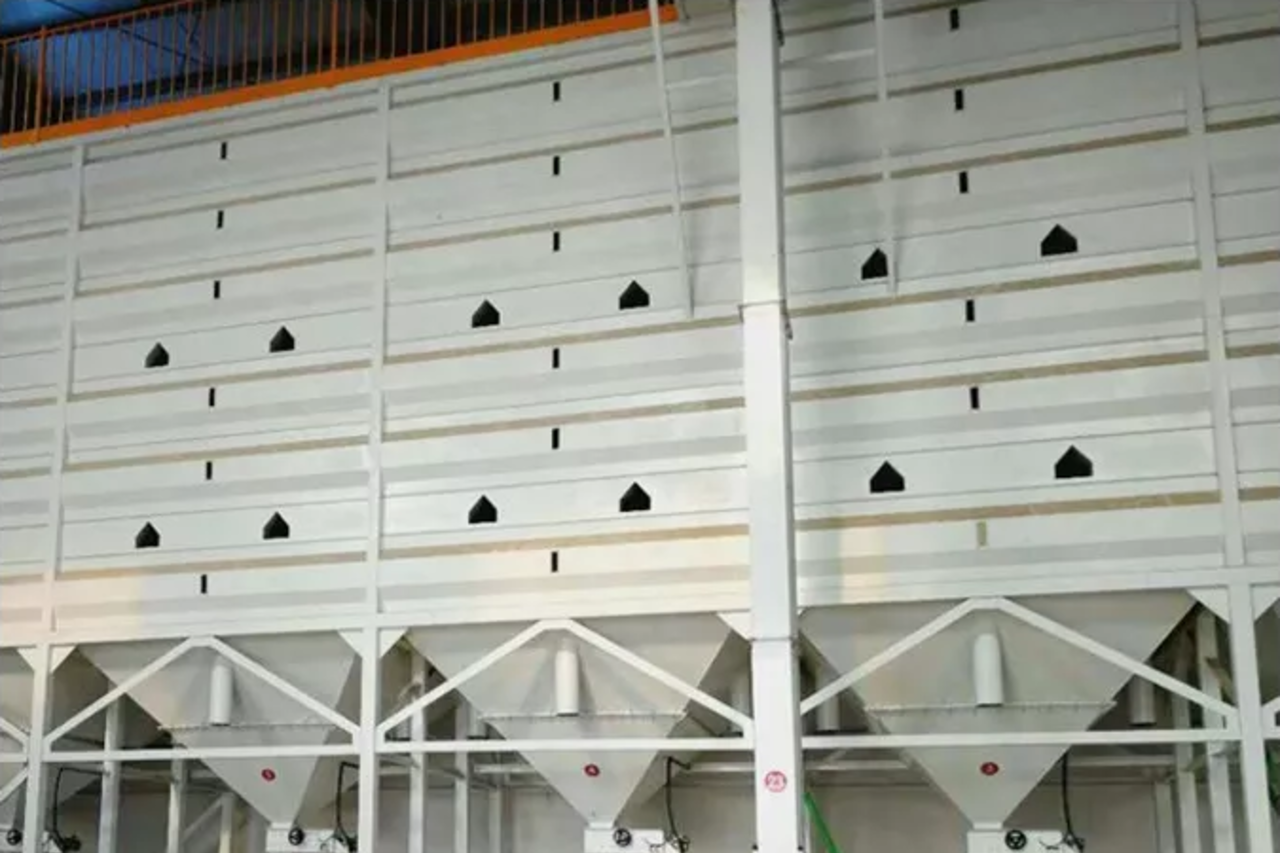

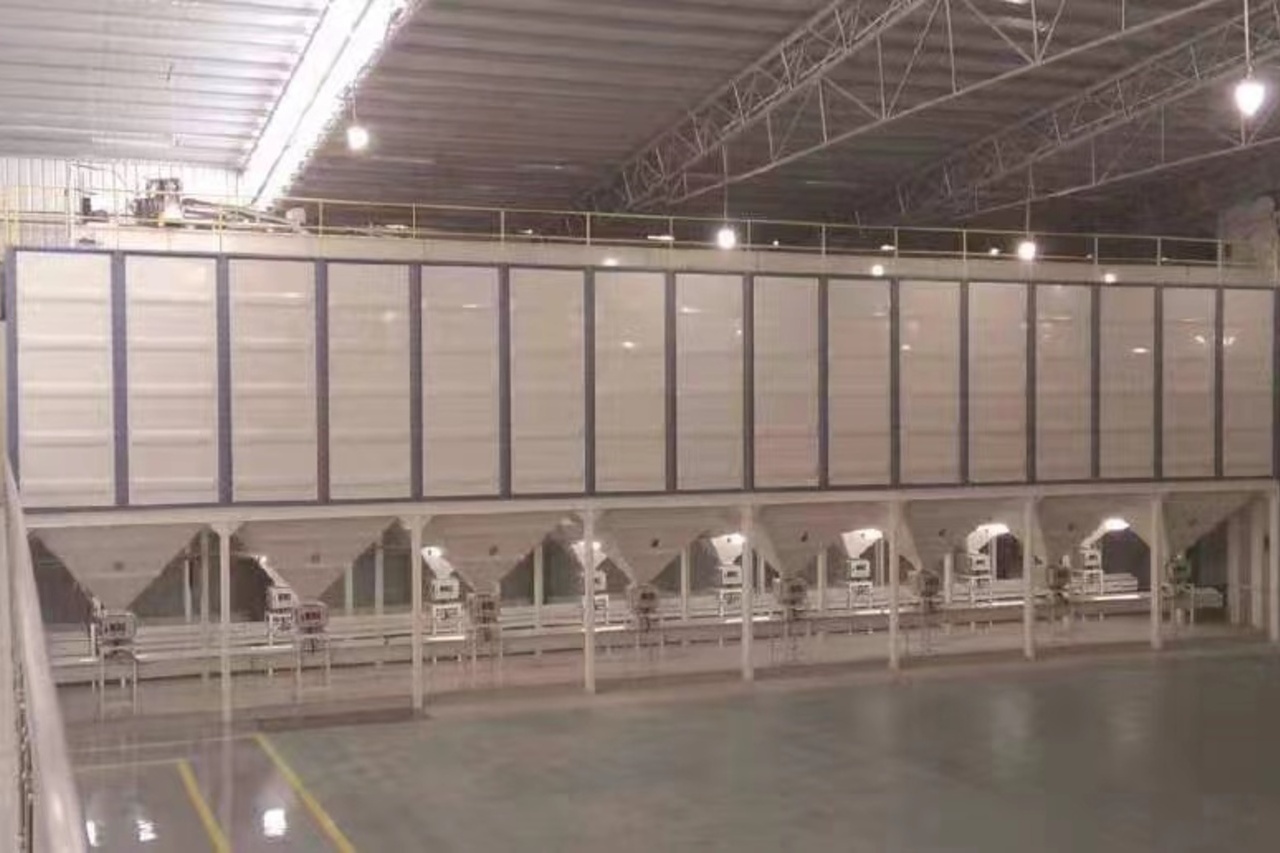

Product Gallery
Specifications
Model | CS35C | CS40 B | CS20F | CS35 | CS27+27 | CS40+40 |
Volume | 27m³/35 tons | 55m³/72 tons | 15m³/20 tons | 29m³/38 tons | 54m³/70 tons | 110m³/144 tons |
Size | Customized per request | |||||
Steel plate thickness | 5mm | 5mm | 5mm | 5mm | 5mm | 5mm |
Air compressor | 1 unit | 1 unit | 1 unit | 1 unit | 1 unit | 1 unit |
OLI-WOLONG | 6 sets | 10 sets | 6 sets | 12 sets | 12 sets | 20sets |
Upper level sensor | 3 units | 6 units | 3 units | 3 units | 6 units | 12 units |
Lower level sensor | 3 units | 6 units | 3 units | 3 units | 6 units | 12 units |
Pressure relief valve | 1 set | 1 set | 1 set | 1 set | 2 sets | 2 sets |
Control cabinet | Fully-automatic control system | |||||
