RUBBER BELT
Application
Minco Rubber Belts are engineered to to the highest standards, to transport all types of bulk material, including mining, stone and earth handling, building industries, recycling, steel processing, wood, paper and pulp.
Features
- High strength.
- High resistant to abrasion.
- Low elongation.
- Resistant to impact.
- Suitable for long distance, large loading capacity and high speed transportation.

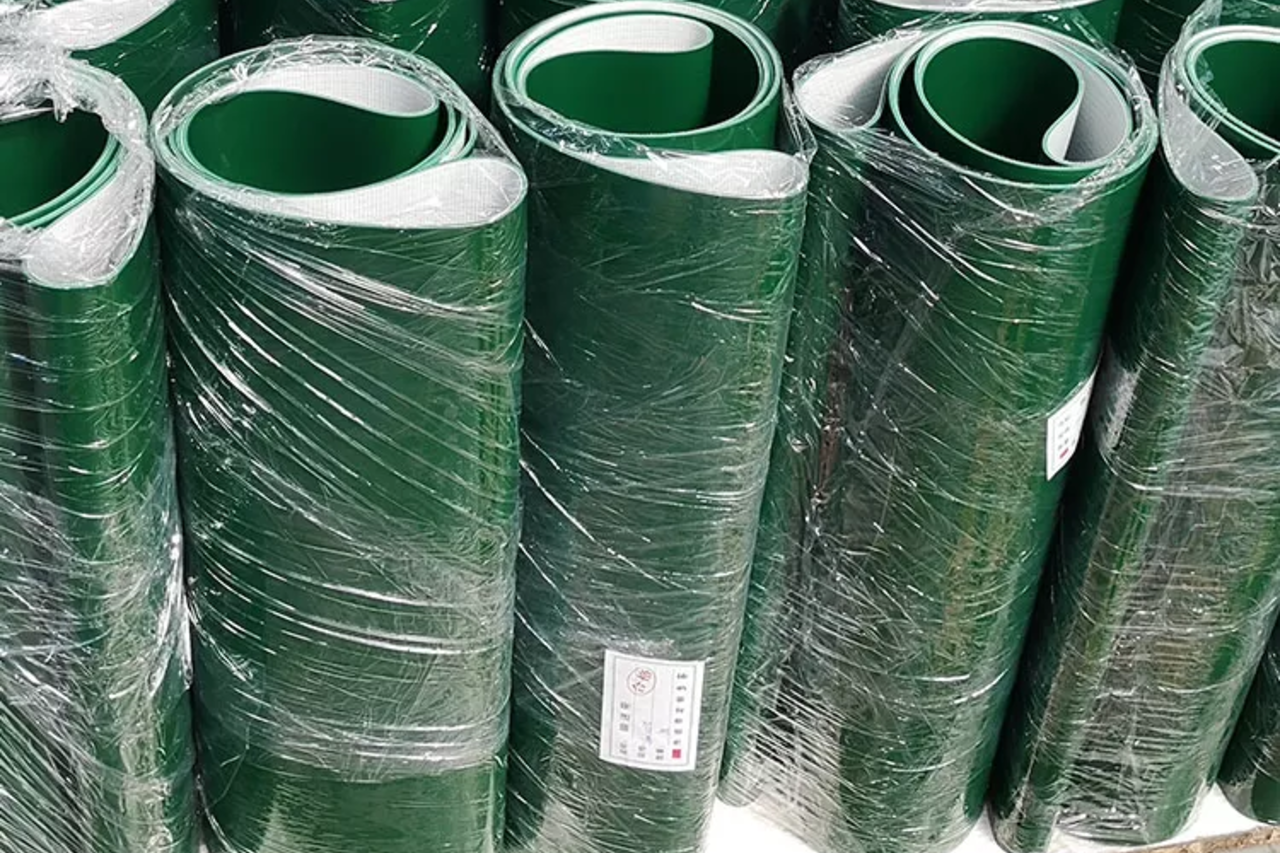

Product Gallery
Specifications
Model | Rated Tensile Strength in Warp (N/mm) | Thickness (mm) | Working Temperature (℃) | Elongation at Rated Load (%) | Recommended Min. Dia. Of Pulley (mm) |
PVC400 | 500 | 4.9-5.4 | -10 – +90 | 0.6 | 100 |
PVC600 | 700 | 5.9-6.4 | -10 – +90 | 0.6 | 150 |
PVC800 | 900 | 7.0-7.5 | -10 – +90 | 0.7 | 250 |
PVC1000 | 1100 | 8.5-9.0 | -10 – +90 | 0.7 | 350 |
