PTFE SHEET/ROD
Application
Minco PTFE Sheet/Rod is widely used as sealing gasket and lubricating materials in corrosive media, electrical insulation parts, corrosion resistant materials under various frequencies, bearing valves, chemical piping, lining in the electrical, chemical, aerospace and machinery fields, and support slider, etc.
Features
Superior endurance in corrosion.
Non-flammable, limited oxygen index is under 90.Low friction coefficient.
Non-viscous, Self-lubricating.
Superior endurance in high & low temperature, can be used -200~260℃.
High electrical insulation.
Atmospheric aging resistance.
Low permeability, good gas barrier property.Good physiological compatibility and anti-thrombotic.

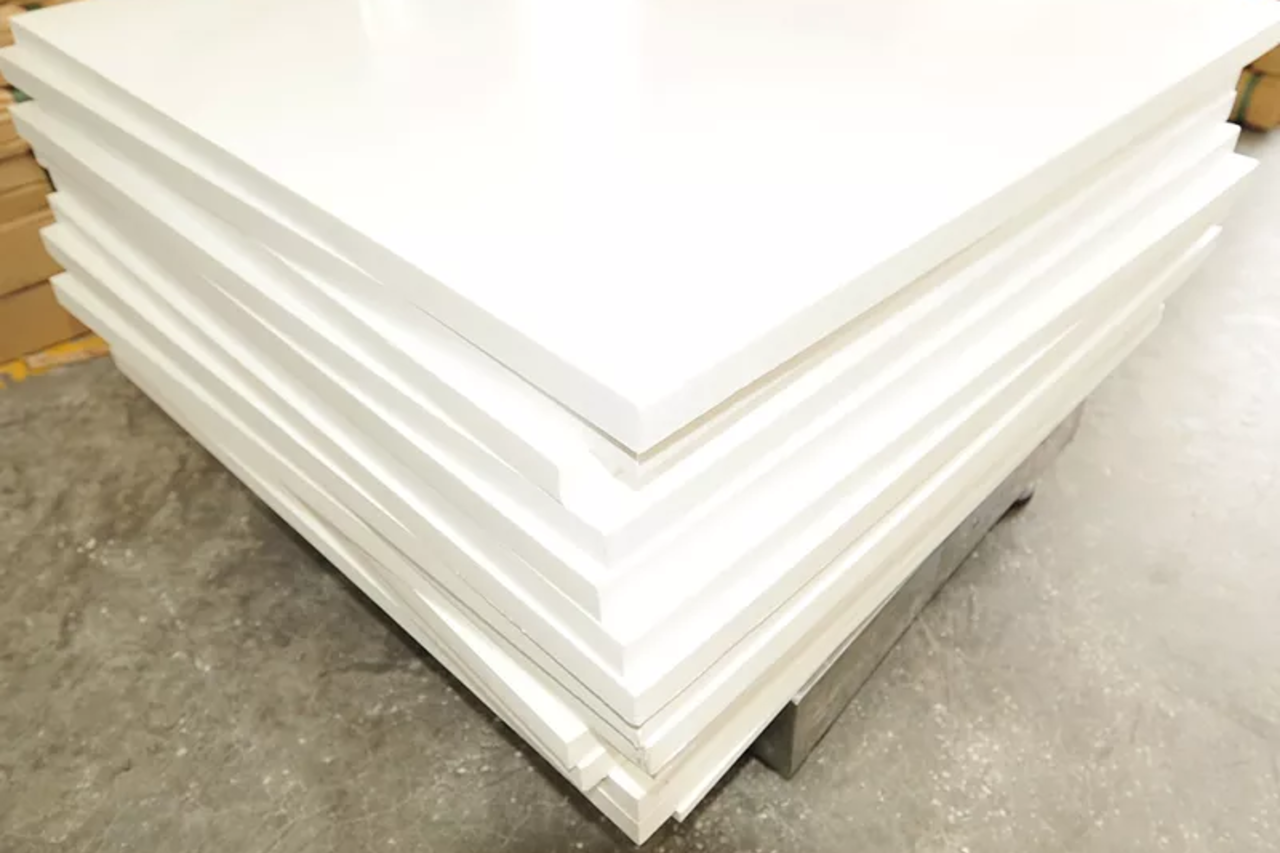

Product Gallery
Specifications
|
Product Name |
Natural Color PTFE Sheet |
|
Material |
PTFE (polytetrafluoroethylene) |
|
Thickness (mm) |
1-100 |
|
Width (mm) |
150 ~ 2000 |
|
Length (mm) |
150 ~ 2000 |
|
Color |
White, black |
|
Certificate |
RoHS, SGS test report |
|
Types |
Rods ,sheets ,Tube |
Technical Data
Property | Typical Data | Result | |
Density (g/cm3) | Molded PTFE Sheet | 2.1~2.3 | 2.16 |
Density (g/cm3) | Skived PTFE Sheet | 2.1~2.3 | 2.16 |
Tensile Strength (MPA) | Molded PTFE Sheet | 15.0 | 25 |
Density (g/cm3) | Skived PTFE Sheet | 20.0 | 28 |
Elongation at Break (%) | Molded PTFE Sheet | 150 | 250 |
Density (g/cm3) | Skived PTFE Sheet | 250 | 300 |
Hardness (Shore D) | Molded PTFE Sheet | 50~60 | 55 |
Density (g/cm3) | Skived PTFE Sheet | 50~60 | 54 |
