PATTERN BELT
Application
Minco Pattern Belts are engineered to be used on slope angles up to approx. 30º for slightly rolling materials such as gravel and coal and up to approx. 40º for sticky materials such as wet sand and earth.
Features
- High strength.
- High resistant to abrasion.
- Low elongation.
- Resistant to impact.
Product Gallery
Specifications
Cover Rubber grade | 8MPA,10MPA,12MPA,15MPA, 18MPA,20MPA,24MPA,26MPA | DIN-X,Y,W, RMA-1,RMA-2, N17,M24 |
Belt width (mm) | 500,600.650,700,800,1000,1200, 1400,1500,1800,2000,2200,2500 | 18″,20″,24″,30″,36″,40″,42″, 48″,60″,72″,78″,86″,94″ |
Tensile strength | EP315/3,EP400/3,EP500/3,EP600/3, EP400/4,EP500/4,EP600/4, EP500/5,EP1000/5,EP1250/5, EP600/6,EP1200/6 | 330PIW, 440PIW |
Belt Material | EP, Nylon NN, Cotton CC, and Polyester Cotton TC | |

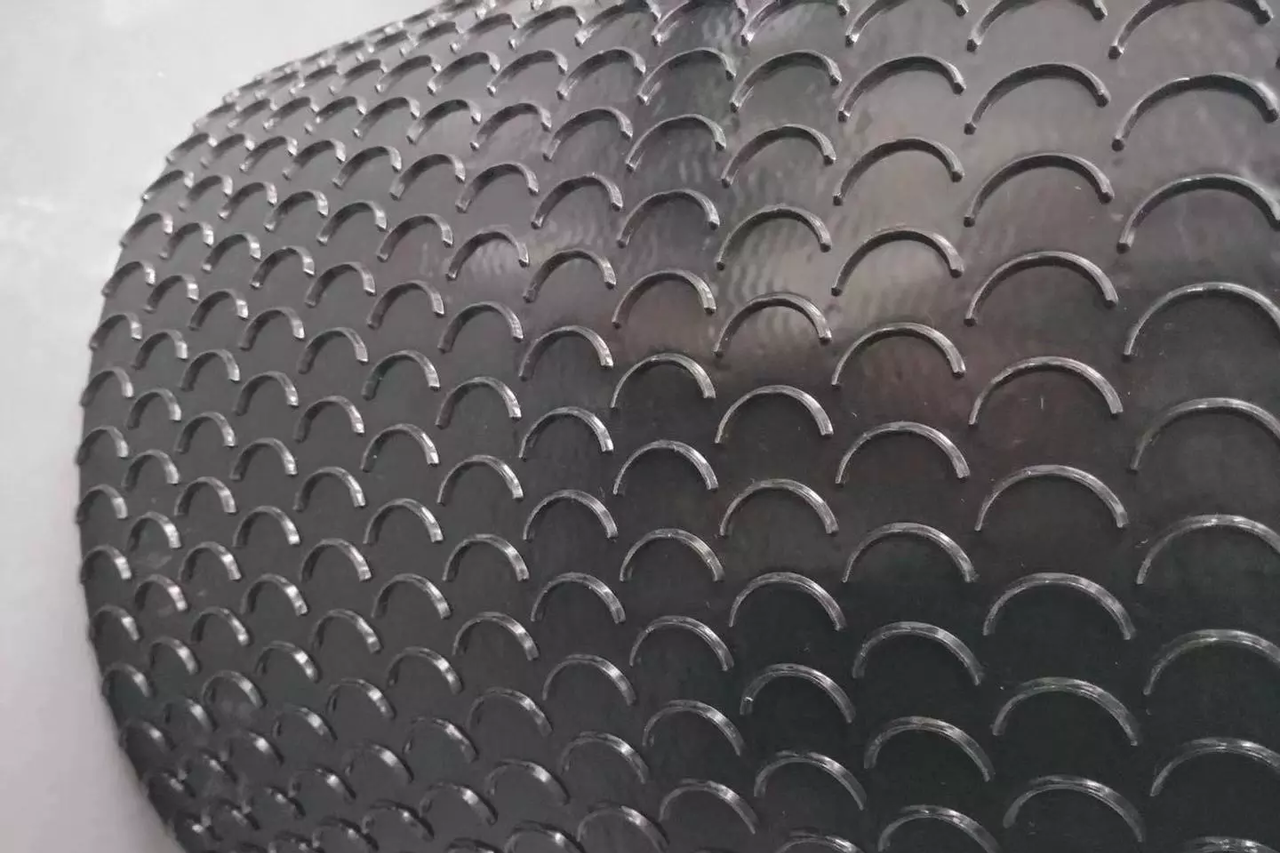

Pattern | “Cross”, “V”, “Doted”, “Crescent”, etc | |
Top+Bottom thickness | 3+1.5, 4+2, 4+1.5, 4+3, 5+1.5 | 3/16″+1/16″, 1/4″+1/16″ |
Belt thickness | 3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,12mm,15mm,20mm,25mm | |
Belt length | 10m,20m,50m,100m,200m,250m,300m,500m | |
Belt edge type | moulded(sealed) edge or cut edge | |
