Pads for tree shakers
Application
Tree shaker is widely used to harvest olives, pistachio nuts, almond nuts, macadamia nuts and other nuts by shaking. These shakers have different features; however, they all depend on the shaker pad to conform to the trunk or limb, while holding the tree to eliminate debarking the tree. Minco offers custom molding of these pads.
Features
- Good weather resistance and high & low temperature resistance.
- Low cost & Excellent anti-ultraviolet performance.
- Smooth, uniform, no deformatio.
- High Strength/Toughness/Service Life.
Product Gallery
Specifications

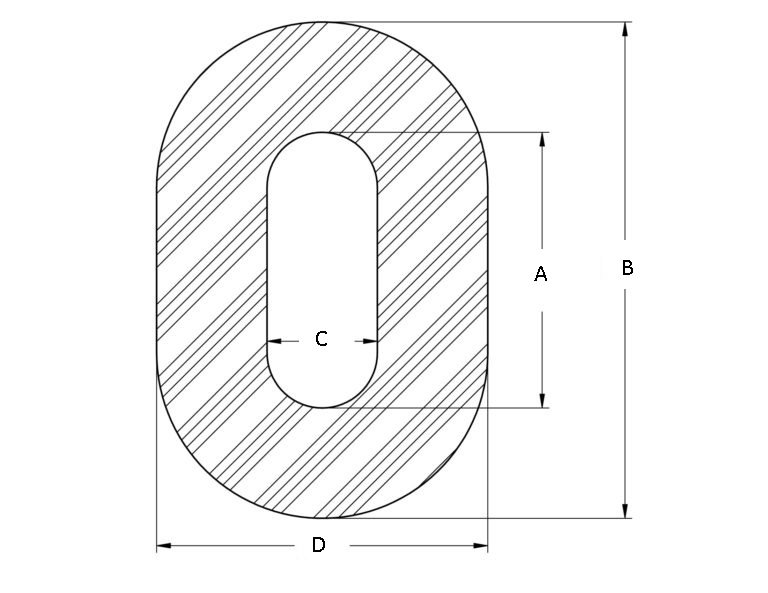

Model | A (mm) | B (mm) | C (mm) | D (mm) | Length (mm) | Hardness (Shore A) |
MNO524 | 127 | 228.6 | 50.8 | 152.4 | 609.6 | 50 |
MNO624 | 127 | 228.6 | 50.8 | 152.4 | 609.6 | 60 |

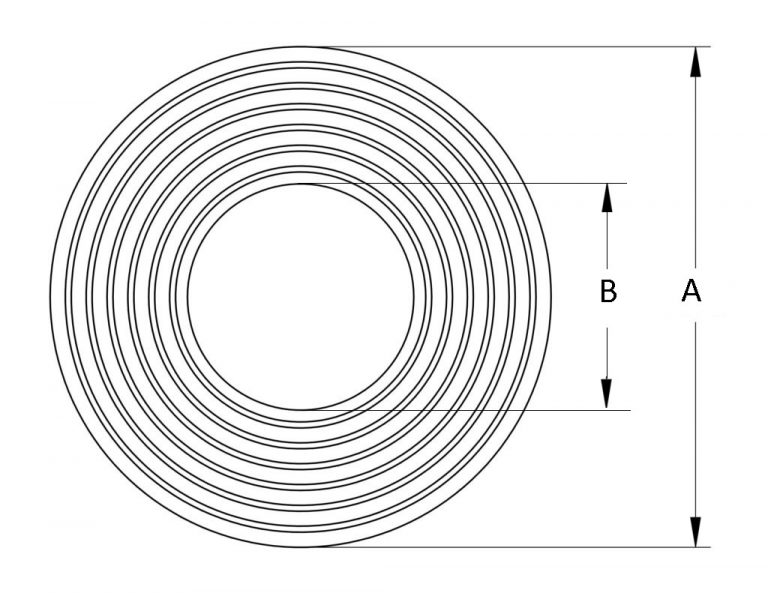

Model | A (mm) | B (mm) | Length (mm) | Hardness (Shore A) |
MNR420 | 213.6 | 50.8 | 508 | 40 |
MNR520 | 213.6 | 50.8 | 508 | 50 |
MNR620 | 213.6 | 50.8 | 508 | 60 |
MNS420 | 213.6 | 101.6 | 508 | 40 |
MNS520 | 213.6 | 101.6 | 508 | 50 |
MNS620 | 213.6 | 101.6 | 508 | 60 |
