FLAT BELT CONVEYOR
Application
Minco Flat Belt Conveyors have been widely used for continuous transport bulk materials like grain, powder and pellets. It is suitable for conveying all kinds of materials with loose density of 0.5 ~ 2.5 T/m³ and also used to transport bulk materials into pieces or package. It is often installed in connection with other transport machinery or conveyors.
Features
- High Capacity, easy to operable.
- Easy to maintain.
- Longer life span.
- Conveying angle can be adjusted to up 45°.
- Adjustable conveying speed, height.
- Easy to install and disassembly.
- Quick release mechanism with preset belt tension.

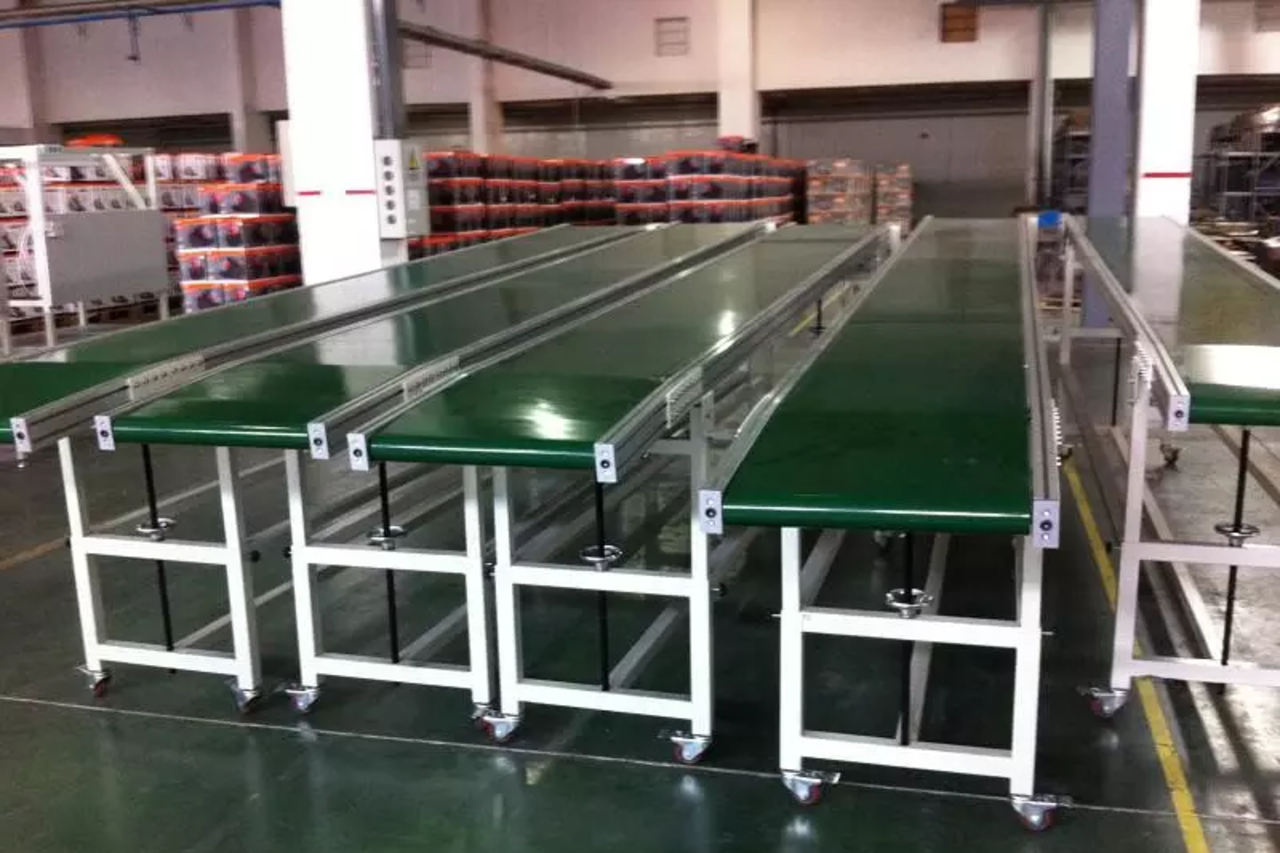

Product Gallery
Specifications
Model | Capacity(T/H) Based on wheat | Belt Width(mm) | Belt Speed(m/s) |
TGSG30 | 30 | 300 | 2.5 |
TGSG40 | 50 | 400 | 2.5 |
TGSG50 | 100 | 500 | 2.5 |
TGSG65 | 200 | 650 | 2.5 |
TGSG80 | 300 | 800 | 2.5 |
TGSG100 | 500 | 1000 | 3.5 |
TGSS200 | 800 | 1200 | 3.5 |
