FIBERGLASS SHEET
Application

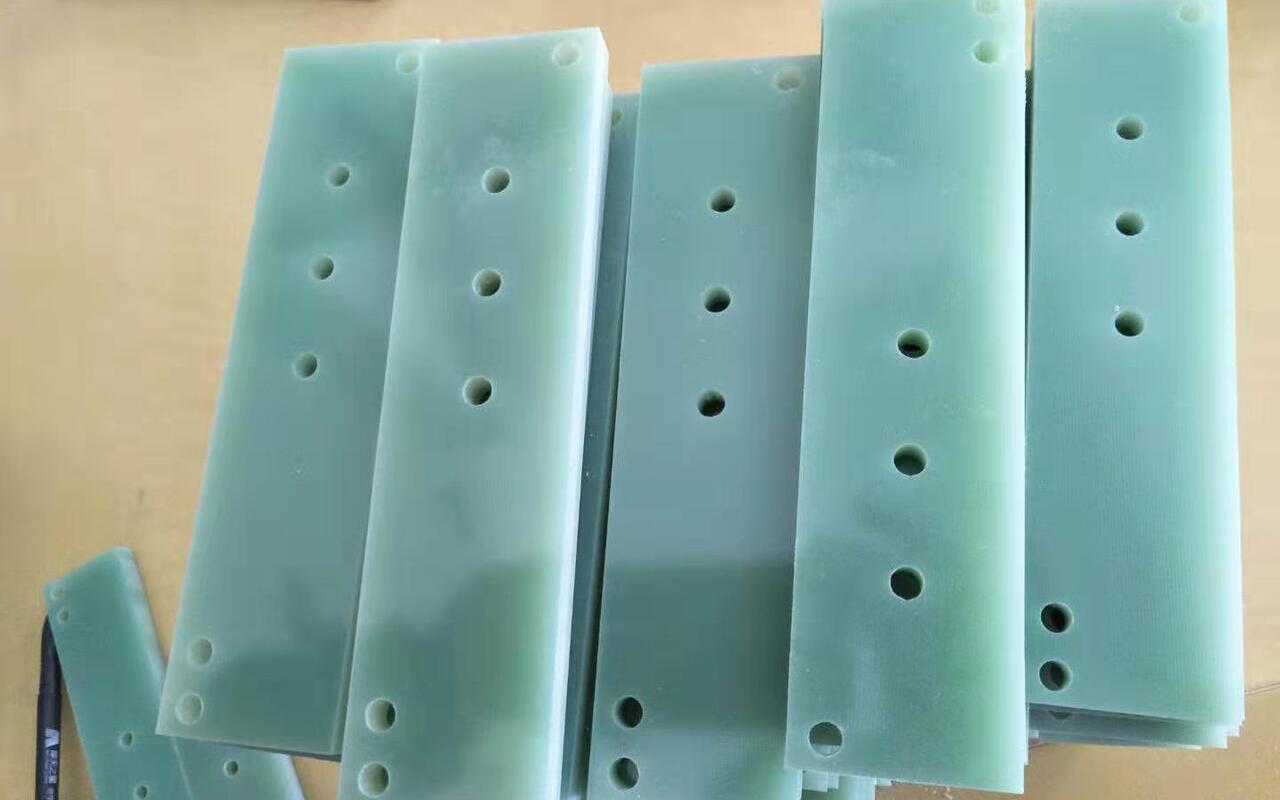

Minco Fiberglass Sheet is made of E-glass fabric impregnated with epoxy resin by processing under high temperature and pressure. With excellent electrical and mechanical properties, good heat and moisture resistance, it is suitable for fixture, mold plate, PCB, grinding machines, drilling machine gear, insulator relay, springboard/leaf spring, etc. The Springboard/Leaf Spring is widely used on vibratory conveyors for metering, weighing and packaging applications within the food industry.
Features
- Excellent corrosion resistance.
- Good impact resistance.
- Good fatigue strength.
- Electrical insulation properties.

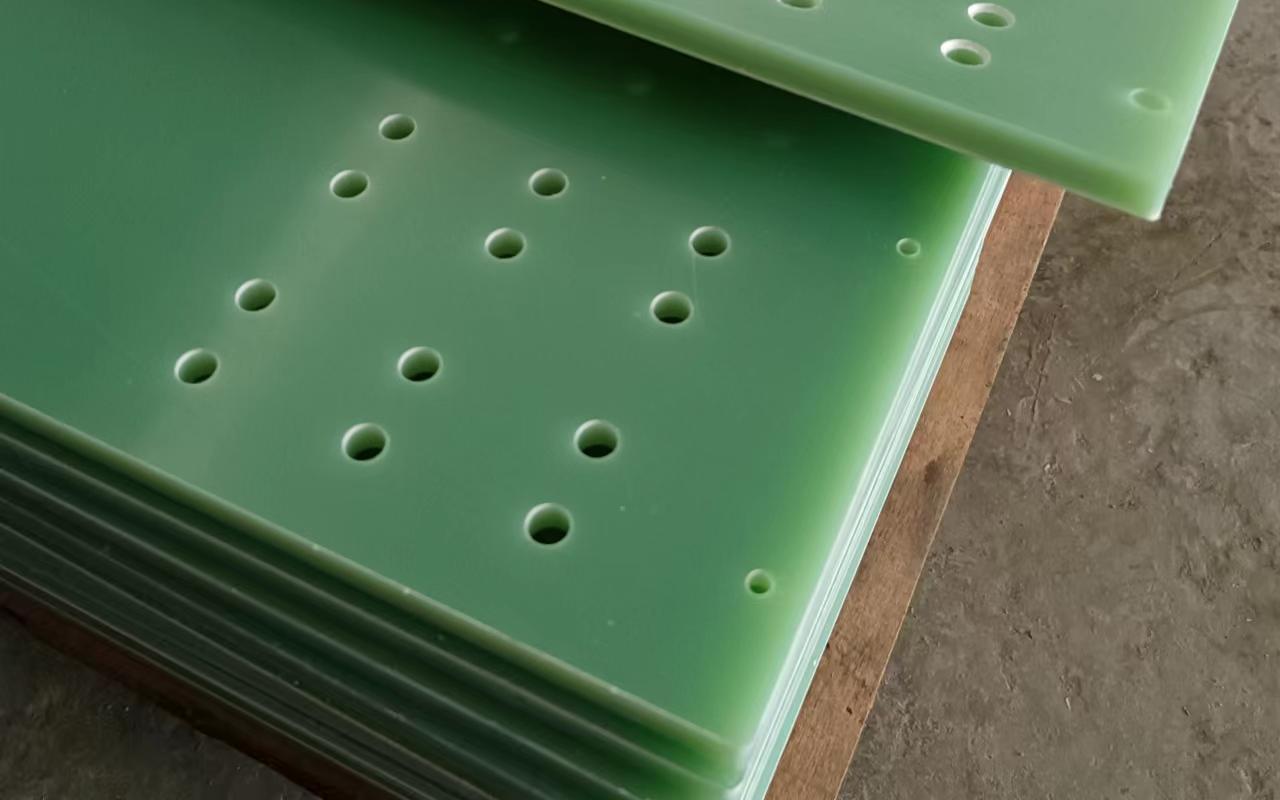

Product Gallery
Specifications
Item | Unit | Value |
Water absorption | % | <0.25 |
Flexural strength | MPa | >500 |
Surface resistivity (C-96/20/65) | MΩ | >105 |
Volume resistivity(C-96/20/65) | MΩ·m | >104 |
Dielectric lose factor (1MHz) | — | <0.03 |
Heat resistance 220°C 20mm | — | No bubble |
Flammability UL94 (1.6mm) | Class | V-0 |
Solvent resistance | — | No change |
Density | g/cm3 | 1.85-1.95 |
Charpy impact strength | kJ/m2 | >45 |
Size | mm | Customized |
Note: Colors white, yellow, black, light green are available. | ||
