DOUBLE –CIRCLE PADDLE MIXER
Application
Minco Double-Circle Paddle Mixer are engineered to mix granules and granules contained material, such as plastic granules, seasoning material, dissolved medicines, and food particles. Our paddles do not only have less damage to the granules, but also less resistance in mixing process, which enables the mixer to run steadily.
Features
- Excellent mixing homogeneity in rapid time.
- Hygienic design.
- Easy maintenance.
- Big size discharge valve to minimize residues.
- Abrasion resistant and heavy duty design for some abrasive material.

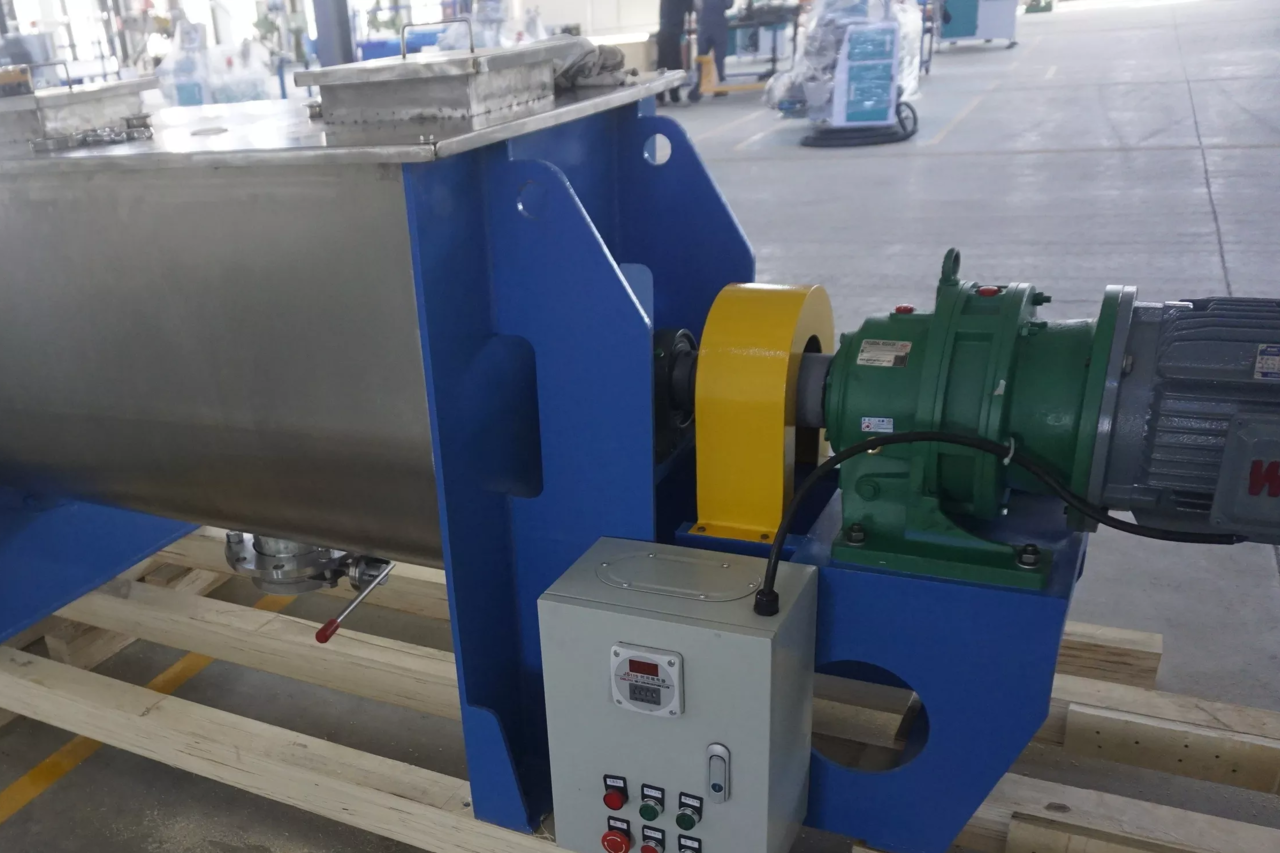

Product Gallery
Specifications
Model | TPW-300 | TPW-500 | TPW-1000 | TPW-1500 | TPW-2000 | TPW-3000 |
Effective Volume (L) | 300 | 500 | 1000 | 1500 | 2000 | 3000 |
Full Volume (L) | 420 | 650 | 1350 | 2000 | 2600 | 3800 |
Loading Ratio | 0.6-0.8 | |||||
Turning Speed (rpm) | 53 | 53 | 45 | 45 | 39 | 39 |
Power (KW) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 |
Total Weight (kg) | 660 | 900 | 1380 | 1850 | 2350 | 2900 |
Power Supply | 400V/50Hz/3P | |||||
